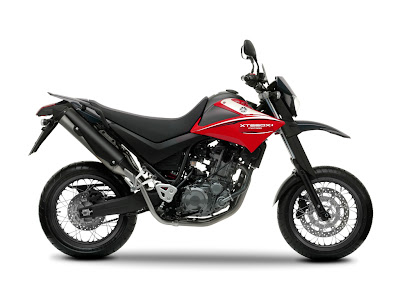

2010 Yamaha XT660X Red
2010 Yamaha XT660X Blue
The 2010 Yamaha XT660X with Supermotard technology, the XT-660X is alive with punchy single-cylinder horsepower. Delivering a new kind of street performance, this bike boasts a fuel-injected, liquid-cooled engine and a taut chassis spec that’s got all the traction and turning you’re ever going to need.
2010 Yamaha XT660X Specifications Details :
* Motor: Liquid-cooled four-stroke single
* Brakes: 320mm disc with Brembo four-pot opposed piston calliper at front, 245mm disc with Brembo single-piston floating calliper at rear
* Valvegear: SOHC with four overhead valves per cylinder
* Power: 35.3kW at 6 000rpm
* Torque: 58.4Nm at 5 250rpm
* Suspension: 43mm Paioli conventional cartridge forks at front, monocross shock adjustable for preload at rear
* Induction: Electronic fuel injection with 44mm throttle body
* Ignition: TCi electronic
* Starting: Electric
* Clutch: Cable-operated multiplate wet clutch
* Transmission: Five speed constant-mesh gearbox with chain final drive
* Tyres: Front: 120/70 - ZR17 radial. Rear: 160/60 - ZR17 radial
* Fuel capacity: 15 litres
Features of Yamaha XT660X
* Super-responsive handling
* Aggressively styled bodywork
* 320 mm front disc brake
* Tough bike for tough urban conditions
* 17 inch aluminium wheel rims
* Single-cylinder, liquid-cooled engine
Engine:
* Engine type: Liquid-cooled, 4-stroke, single cyclinder, 4-valve, SOHC
* Displacement: 660 cc
* Bore x stroke: 100.0 x 84.0 mm
* Compression ratio: 10.0: 1
* Maximum power: 35.3 kW (48 PS) @ 6,000 rpm
* Maximum torque: 60.0 Nm (6.1 kg-m) @ 5,250 rpm
* Lubrication system: Dry sump
* Fuel System: Fuel injection
* Clutch type: Wet, multiple-disc coil spring
* Ignition system: TCI
* Starter system: Electric
* Transmission system: Constant mesh, 5-speed
* Final transmission: Chain
* Fuel tank capacity: 15 L
* Oil tank capacity: 2.9 L
Chassis:
Chassis: Steel tube, diamond shaped
Front suspension system: Telescopic forks
Front travel: 200 mm
Rear suspension system: Swingarm (monocross)
Rear travel: 200 mm
Caster angle: 26°
Trail: 94 mm
Front brake: Single disc, Ø 320 mm
Rear brake: Single disc, Ø 245 mm
Front tyre: 120/70R 17M/C
Rear tyre: 160/60R 17M/C
Dimensions:
Length: 2,175 mm
Width: 860 mm
Height: 1,170 mm
Seat height: 865 mm
Wheel base: 1,490 mm
Minimum ground clearance: 205 mm
Wet weight: 189 kg
